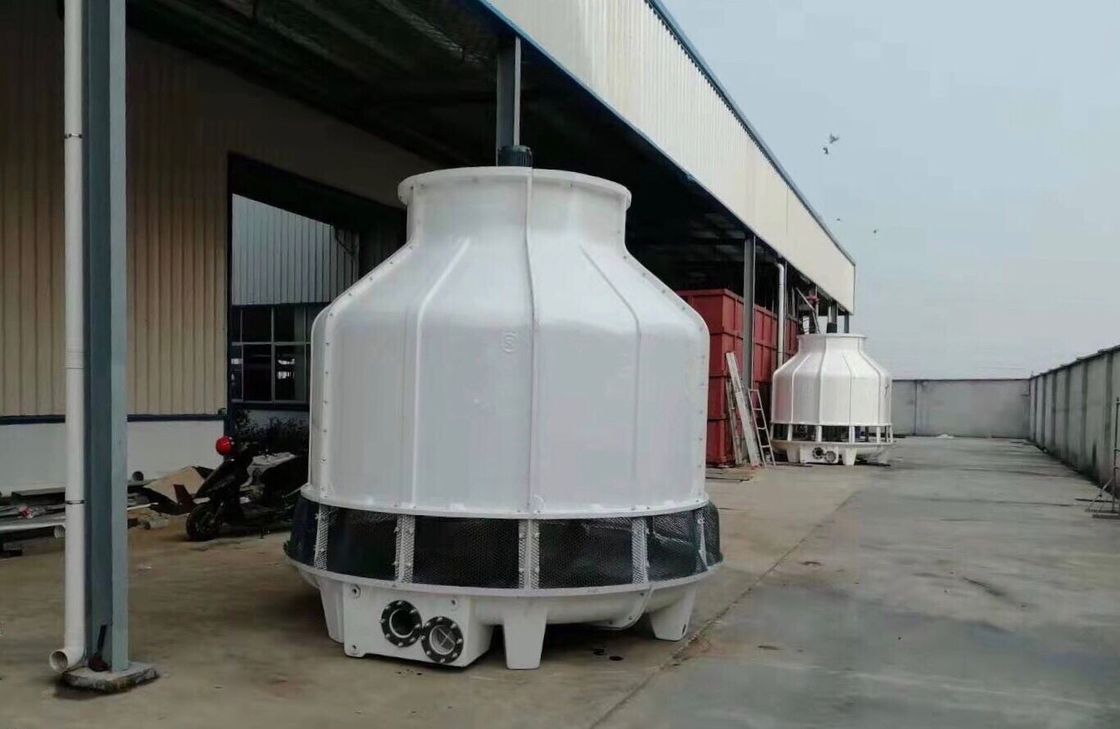

Name: 150Ton cooling water tower is used to cool production equipment and process circulating water such as reactors, steelmaking furnaces, rolling mills, extruders, paper machines, fermentation tanks
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 150 टन
Price: 2,100.00 USD
Availability: InStock

घर > उत्पादों > जल शीतलक मीनार >

150Ton cooling water tower is used to cool production equipment and process circulating water such as reactors, steelmaking furnaces, rolling mills, extruders, paper machines, fermentation tanks

150Ton industrial cooling water tower

cooling tower for steelmaking furnaces

process circulating water cooling tower

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

SZAGS

मॉडल संख्या:

150 टन

संपर्क करें

एक उद्धरण का अनुरोध करें

उत्पाद विवरण

शीतलन क्षमता:

585000kcal/h

नाममात्र प्रवाह:

117m3/h

शक्ति:

220 ~ 480V ／ 3P ~ 50 ~ 60Hz

ऊंचाई × व्यास ((H×φ):

3350 × 3030 मिमी

प्रमुखता देना:

150Ton industrial cooling water tower

cooling tower for steelmaking furnaces

process circulating water cooling tower

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा

मूल्य

बातचीत योग्य

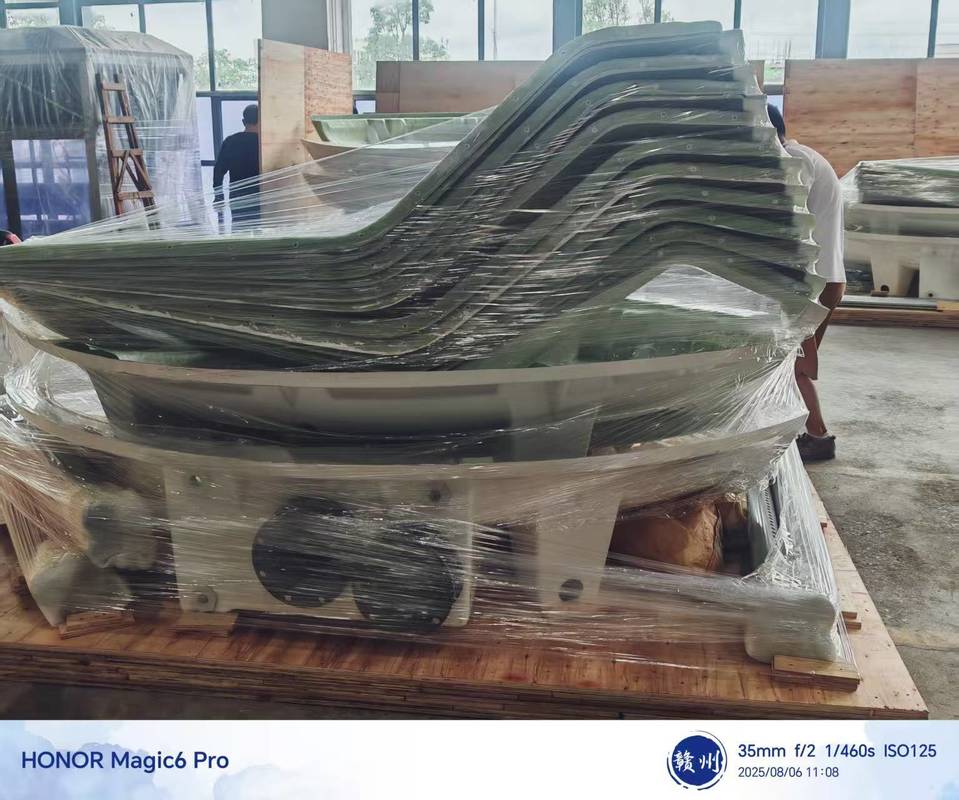

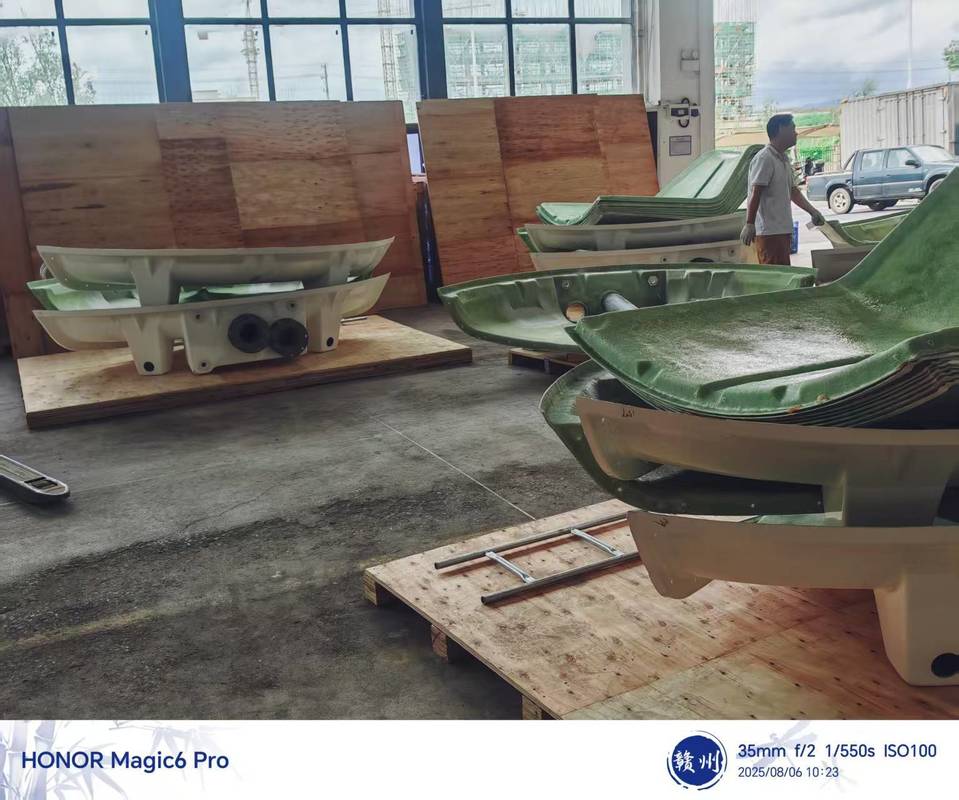

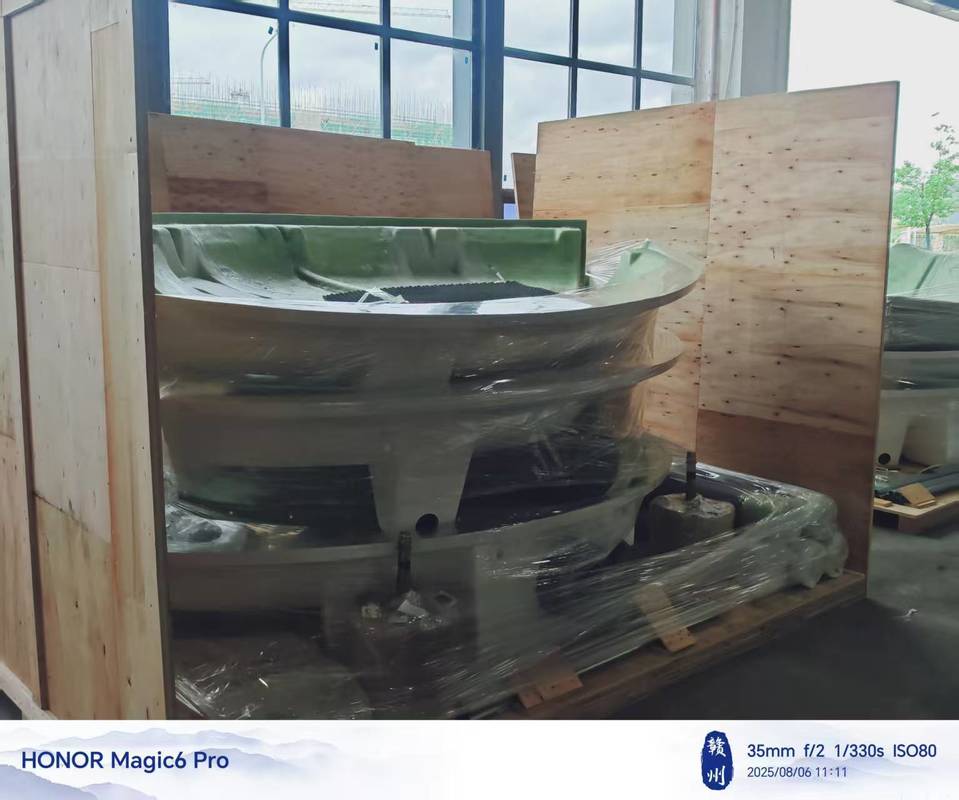

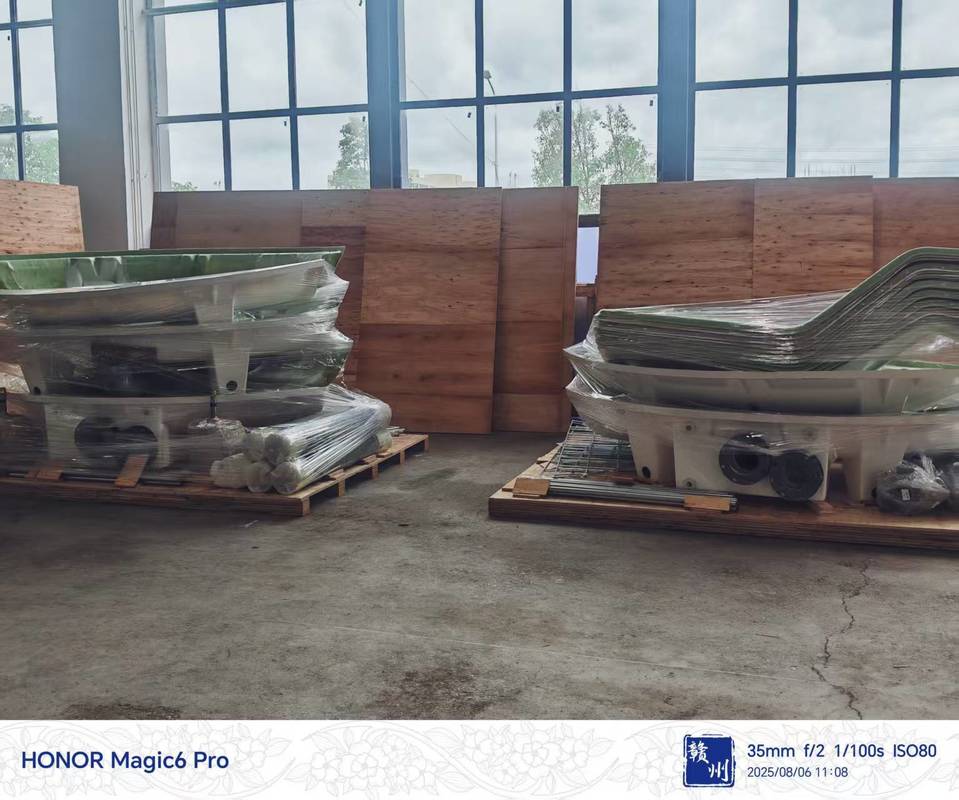

पैकेजिंग विवरण

प्लाईवुड मामले

प्रसव के समय

15 दिन

भुगतान शर्तें

टी/टी

संबंधित उत्पाद

86-755-8958-2358

अभी संपर्क करें

उत्पाद वर्णन

60tons cooling tower technical parameters

Model		STG-150
Basic parameter	Type	Counter current circular cooling tower
	Nominal flow	117m³/h
	Inlet/outlet temperature	37℃／32℃
	Dry-bulb temperature	31.5℃
	Wet-bulb temperature	27℃
	Cooling capacity	585000kcal/h
	Noise (dB(A))	63.5dB(A)
	Power	220~480V／3P／50~60Hz
	Water quality	PH＝6 to 8
	N.W／G.W	580kg／1680kg
Fan	Fan type	Axial Flow
	Cooling air flow(m3/h)	70200m³/h
	Rotation speed(r/min)	710r/min
	Diameter	1450 mm
	Quantity	4 pieces/set
	Electronic box	Water proof type
	Power	2.2kw
	Start-up mode	Direct start
Size	Height × diameter(H×φ)	3350×3030mm
	Inlet pipe caliber	150mm
	Outlet pipe caliber	150mm
	Full outlet/drain off pipe caliber	25mm／25mm
	water supply pipe caliber	25mm
Material	Sprinkler	P.V.C-U
	Casing	Fiberglass
	Water basin	Fiberglass
	Fan	Al alloy
	Electronic box	Water proof type
	In -fill	P.V.C.
	Shelf	Hot-dip galvanized steel

WORKING PRINCIPLE

	A cooling tower is designed to remove heat from a building or facility by spraying water down through the tower to exchange heat into the inside of the building. Air comes in from the sides of the tower and passes through the falling water.

	A cooling tower is a device that rejects waste heat to the atmosphere through the cooling of a coolant stream, usually a water stream to a lower temperature.

	Cooling towers may either use the evaporation of water to remove process heat and cool the working fluid to near the wet-bulb air temperature or, in the case of dry cooling towers, rely solely on air to cool the working fluid to near the dry-bulb air temperature using radiators.

Advantages

	Tower body temperature weight: reduce the design requirements for the foundation and installation costs.

	The cooling water volume of the tower can be adjusted: for a given type of cold water tower, with working water pressure change (that is, flow change) in and out of the water temperature difference is generally unchanged, so you can increase the water supply pressure method to improve the cooling water volume of the tower (within the scope of the spray device), but also can change the nozzle aperture method to adjust the tower water volume and temperature drop.

	No plugging, no maintenance, stable and reliable operation. A series of phenomena that affect the performance of the tower and process system equipment such as the plugging of the packing column due to the impurities in the circulating water, the aging of the packing, the deformation, the brittle-cracking, the plugging and flushing of the sprinkler head, the plugging of the packing brittle-chip in the pipeline, the pump and the heat exchanger are completely eliminated. It completely eliminates the trouble of frequent cleaning, replacement of filler and spray nozzle

	Main Features

	Small floating water rate: the spray device is evenly distributed in the tower, and the outlet area is about twice as large as that of the traditional power tower, so the wind speed is small. At the same time, the top of the tower is installed with excellent performance of the water collection device, which minimizes the amount of floating water, and eliminates a lot of water refill.

	​ Good cooling effect: the hot water in the tower exchanges heat with the incoming air under the condition of mist. Due to the small wind resistance in the tower and the reasonable design of air duct and wind blade, the ratio of air to water is improved.

	Common applications include cooling the circulating water used in oil refineries, petrochemical and other chemical plants, thermal power stations, nuclear power stations and HVAC systems for cooling buildings.  The classification is based on the type of air induction into the tower: the main types of cooling towers are natural draft and induced draft cooling towers.
